CC-20 WITHOUT STRAW EXTRACTOR
Technical Specifications
- Tractor 150 HP
- Stalks size 200 to 240 mm
- Cutting height of the tip 1800 to 2800 mm
- Distance between the line lifters 1200 mm
- Rotation PTO 540 rpm
- Nominal output 20 to 40 ton/h
- No. of cutter blades 8
- Distance between roll centers 360 mm
- Number of rollers with disc 2 vertical
- No. of blades per rolls 4 replaceable
- Roller Drive mechanical / reversible
- Chopping rotor drive mechanical
- Weight 3250 kg
Harvests sugarcane in stalks in from 200 mm to 240 mm, coupled on the side of tractors from 150 HP double and super clutch gearbox with perfect base cutting without shattering punches, tips cutter, with drive shaft and screw without order to raise cane, 2 wheel support with tires, with production / time 20 ton to 40 ton.
Details

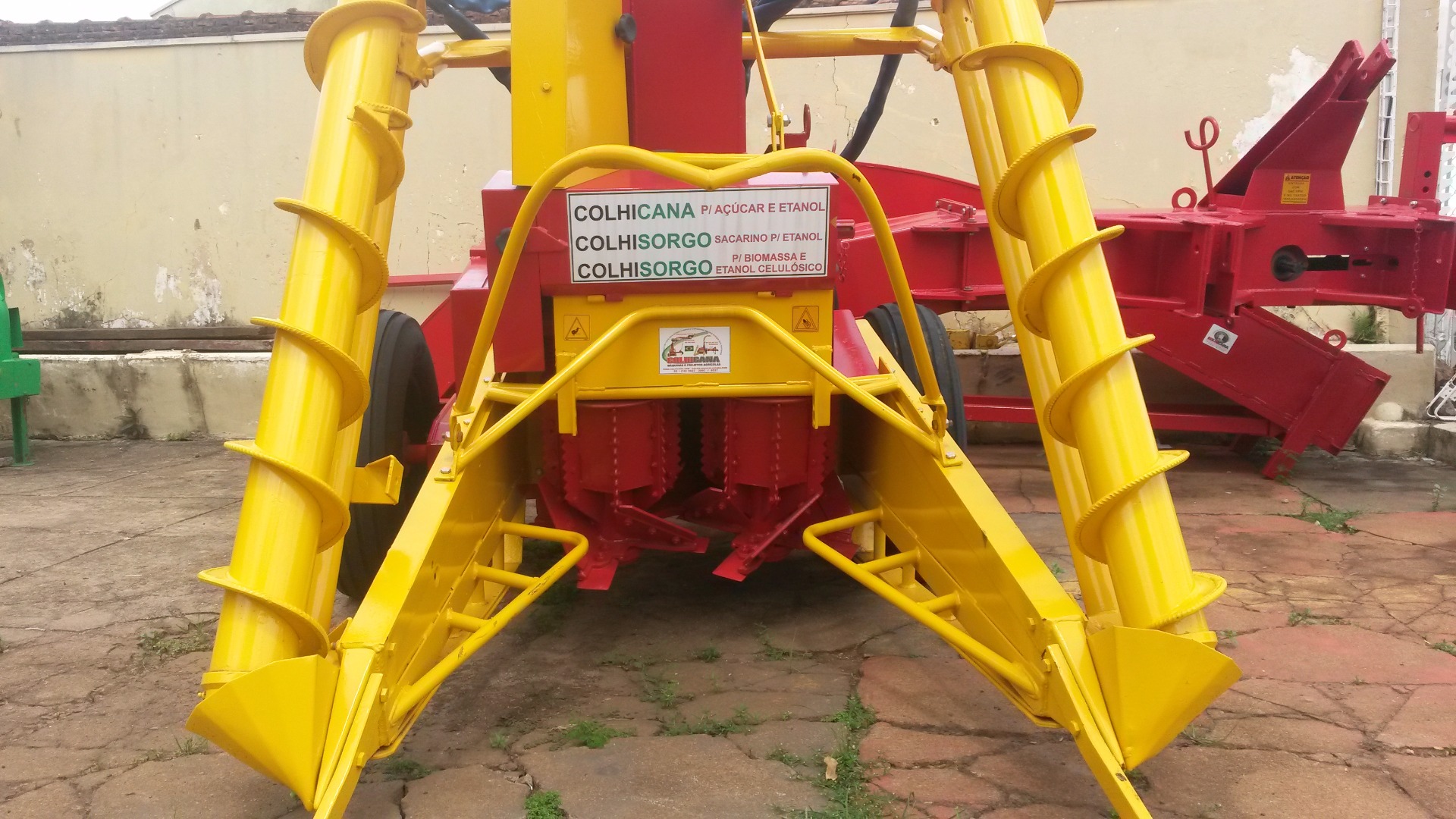

Roller feed system and screw-worm.
Coupling.
Tip cutter.
